Remove Soft-close motor

Preliminary work

• Refer to REMOVING THE OUTER WINDOW CHANNEL STRIP AT THE REAR DOOR .
• Refer to REMOVING REAR DOOR TRIM .
• Refer to REMOVING MODULE BRACKET ON THE REAR DOOR .
• Refer to REMOVING THE DOOR LOCKING ON THE REAR DOOR .

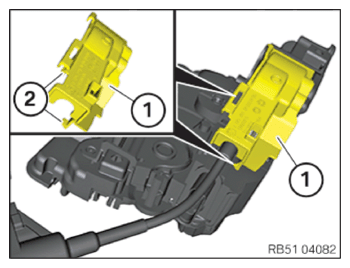

• Loosen cover (1) on locks (2).
• Remove the cover (1).

  Courtesy of VOLVO CARS CORPORATION

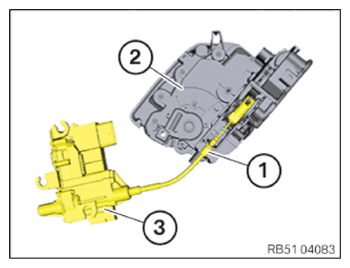

• Detach Bowden cable (1) from door lock (2).
• Remove the soft-close motor (3).

  Courtesy of VOLVO CARS CORPORATION
