Installing the trunk lid handle

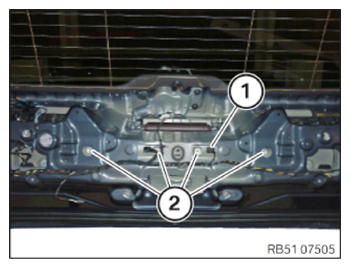

• Install the trunk lid handle (1) and engage at the clips (2).

  Courtesy of VOLVO CARS CORPORATION

• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trunk lid handle on trunk lid
  Nut M5
  	tightening torque	4.4 Nm

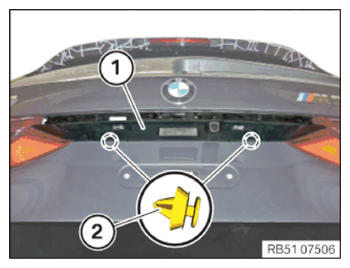

• Connect plug (1).

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE REAR VIEW CAMERA (RFK) .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAME .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE TAILGATE TRIM STRIP  .
