Installing the lower part on the rear bumper cover

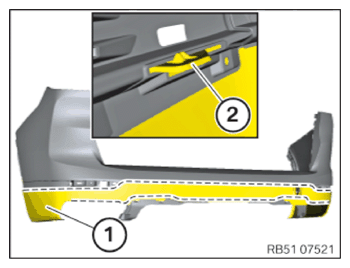

• Install the lower part on the rear bumper cover (1)  and engage into the detents (2)  along the dotted lines.

  Courtesy of VOLVO CARS CORPORATION

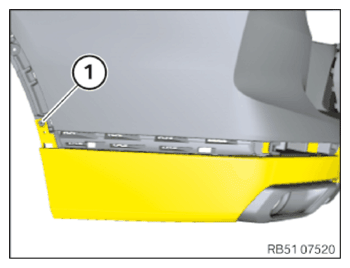

• Mount the expanding rivet (1)  at left and right with the special tool 0 496 521 (00 2 230) .

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE SIDE REAR TRIM STRIP  .
• Refer to INSTALLING THE SUPPORTS FOR THE EXHAUST COVERS LEFT AND RIGHT .
• Refer to INSTALLING REAR BUMPER PANEL  .
• Refer to INSTALLING REAR REFLECTOR .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
