Installing the outer headlight decorative trim on the left and right (M package)
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the outer headlight decorative trim (M package)

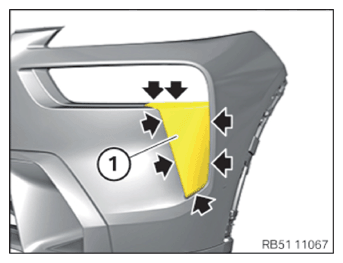

- Position the outer decorative trim of the headlight (1)
on the retaining lugs (arrows) and snap it in.
 Courtesy of VOLVO CARS CORPORATION
|
