Installing the rear ventilation grille

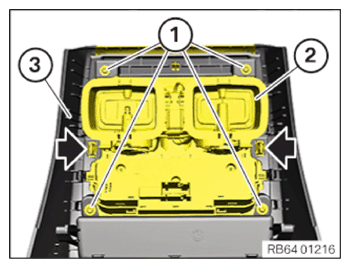

• Insert the ventilation grille for the rear (2) correctly into the rear center console trim (3).
• Engage the detents (arrows).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Ventilation grille to decorative strip/instrument panel
  Screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
