Securing the wiring harness section of the cylinder head cover on the right

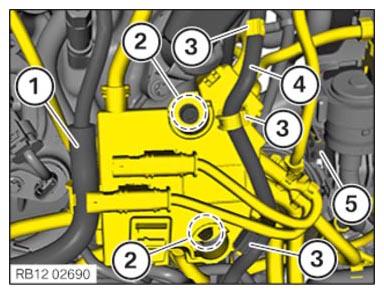

- Connect connectors (3) and lock.
The connector (3) must engage audibly.
- Tighten the nut 2.Tightening torques
Positive battery cable to alternator M8 tightening torque 19 Nm - Mount cover (1) on nut (2).

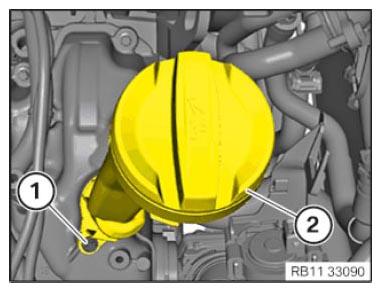

- Position oil filler neck (2).
- Tighten down screw (1).
Tightening torques
| Oil filler neck | ||
| M6x16 | tightening torque | 10 Nm |
- Fix clip (2).
- Tighten down screw (4).
Tightening torques
| Hexagon screw M6 with threaded bolt M5 | ||
| Screw M6 with threaded bolt M5 | tightening torque | 10 Nm |

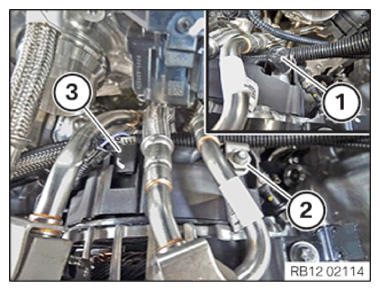

- Position the grounding point (5).
- Tighten nut (3).
Tightening torques
| Ground cable on cylinder head cover / ground pin | ||
| Nut M5 | tightening torque | 4.6 Nm |
- Tighten down screw (1).
Tightening torques
| Wiring harness to cylinder head cover | ||
| M6x16 screw | tightening torque | 10 Nm |

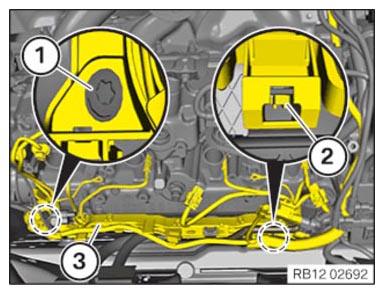

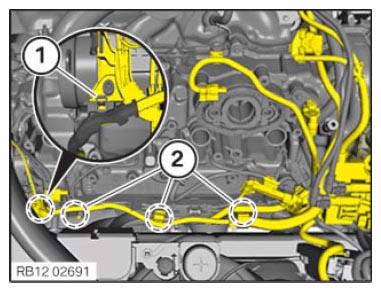

- Position the wiring harness (3).
- Fix wiring harness mountings (2).
- Tighten down screw (1).
Tightening torques
| Wiring harness to cylinder head cover | ||
| M6x16 screw | tightening torque | 10 Nm |

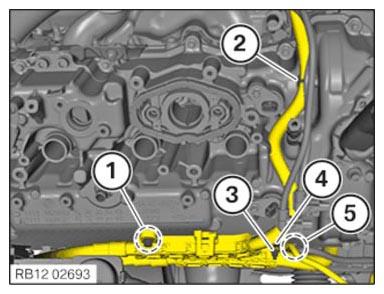

- Secure the wiring harness mounting 1.
- Fix wiring harness mountings 2.
- Secure the wiring harness mounting (5).
- Secure the wiring harness of the integrated power supply module (4) to fixtures (3).
- Tighten the screws (2).
Tightening torques
| Wiring harness to cylinder head cover | ||
| M6x16 screw | tightening torque | 10 Nm |
- Clip in transmission wiring harness (1).

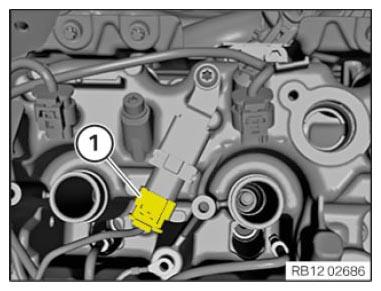

- Connect and lock the connector on pressure sensor (1).

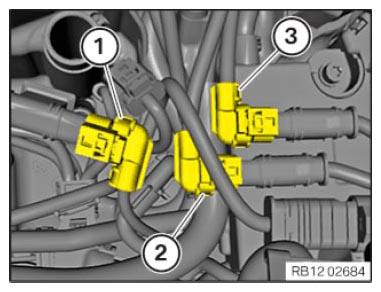

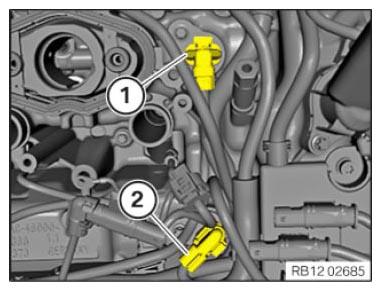

- Connect and lock connector (2) on the intake camshaft sensor of cylinder bank (1).
- Connect and lock connector (1) on the exhaust camshaft sensor of cylinder bank (1).
- Connect and lock connector (1) to (3).
