Securing the wiring harness section from the cylinder head cover on the left

NOTE: RISK OF DAMAGE
A Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060 .
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.

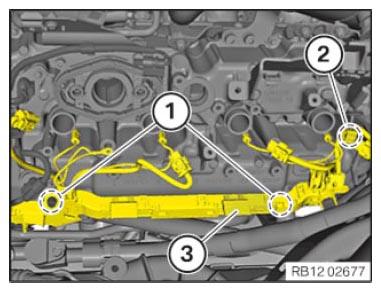

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Cable duct to cylinder head cover/cylinder head
M6 screw
	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Cable duct to cylinder head cover/cylinder head
M6 screw
	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully pull the coolant hose (2) upwards over the refrigerant line (3) in the marked area and set aside.
Lock the holder (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

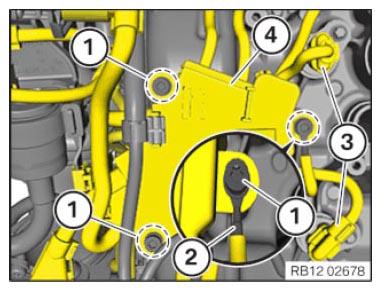

Position wiring harness section (4) .
Position the grounding point (3) .

Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Ground cable to cylinder head cover/cylinder head
M6
	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

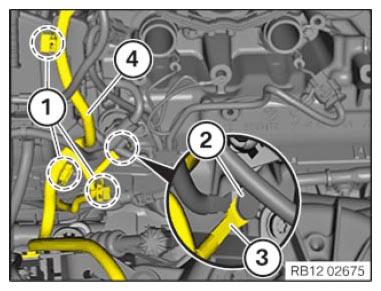

Fix the wiring harness mounting in areas (1) .
Secure the wiring harness mounting (3) .

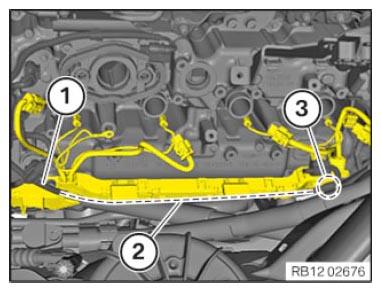

Fix wiring harness section (1) in area (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

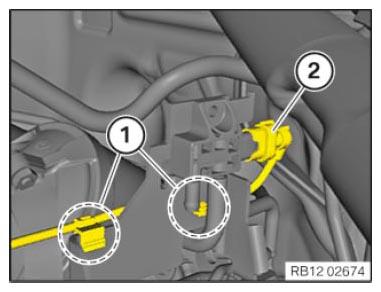

Fix the wiring harness mounting in areas (1) .
Connect connectors (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
