Removing the front intake pipe partially

CAUTION: Residual pressure in the heating and air conditioning system.
Injury hazard!

Wear safety goggles and protective gloves when disconnecting the refrigerant line.
Close the refrigerant lines with seal plugs.

Unlatch the holder (1) .
Remove the intake line (2) out of the holder (1) and guide out below the wires (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the intake line (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

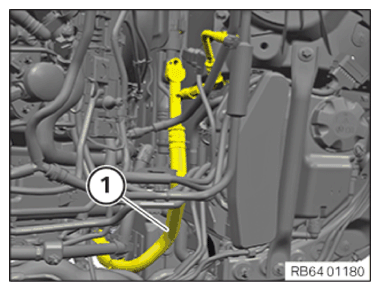

Set the intake pipe (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.
