Partially releasing the wiring harness section of the right cylinder head cover

Release plug connections (1) to (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the plug connection (1) of the exhaust camshaft sensor of the cylinder bank 1.
Unlock and disconnect the plug connection (2) of the intake camshaft sensor of cylinder bank 1.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the plug connection of the pressure sensor (1).

Courtesy of BMW OF NORTH AMERICA, INC.

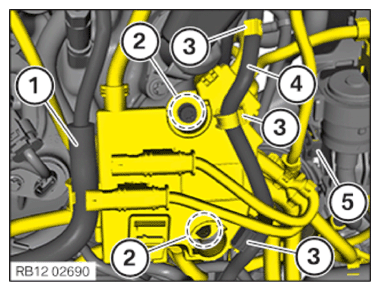

Unclip the transmission wiring harness (1) .
Loosen screws (2) .
Release the wiring harness of the integrated supply module (4) at the fixations (3) .
Release the wiring harness mounting (5) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness mounting (1) .
Release the wiring harness mountings (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Release the wiring harness mountings (2) .
Place the wiring harness (3) on the side.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Release the nut (3) .
Lay the grounding point (5) to one side.
Loosen screw (4) .
Release the clip (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Remove the oil filler neck (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove cover (1) .
Loosen nut (2) .
Disconnect positive battery cable from alternator.
Unlock plug connection (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
