Installing the roller cam follower of the intake camshaft
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- If a new hydraulic valve clearance compensating element has not been installed, install in the same position.

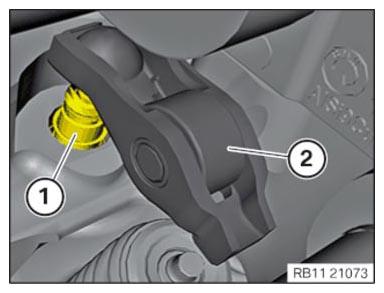

- Install all hydraulic valve clearance compensating elements (1) downward.
- If the roller cam followers are not being replaced, install the roller cam followers in the same position.
- Install the roller cam follower (2).
