Installing the output shaft on left and right

Installing left output shaft

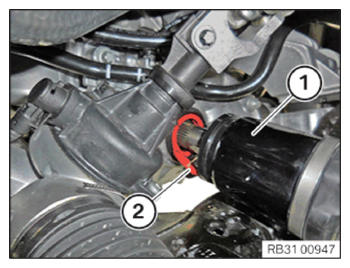

• Fold open the assembly protection ring (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

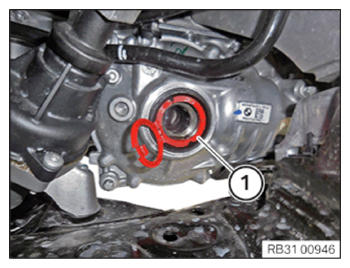

• Feed the output shaft (1)  in the front axle transmission.
• Pull on the lug (2)  of the installation protection ring until one of the two predetermined breaking points breaks.
• Pull out and dispose of the installation protection ring.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the output shaft (1)  to the stop into front axle transmission.
  NOTE: Output shaft coupling must snap audibly into place.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install right output shaft

• Release swivel bearing (1) out of special tool  2 413 317  on the upper wishbone.

  Do not allow swivel bearing (1)  to hang down from the brake hose.

  Courtesy of BMW OF NORTH AMERICA, INC.

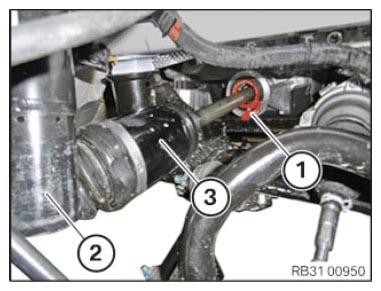

• Fold open the assembly protection ring (1)  .
• Pull spring strut (2)  slightly to the front in the driving direction.
• (3)  Insert output shaft into the bearing support.
• Pull the lug of the installation protection ring (1)  until one of the two predetermined breaking points yields.
• Pull out the installation protection ring (1)  and dispose of it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide in output shaft (1)  up to the stop in the bearing bracket with a jerk.

  The output shaft (1)  must engage noticeably and audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Secure the swivel bearing

• Fasten the swivel bearing (1)  by using the special tool 2 413 317 to protect it from tilting outwards.

  Swivel bearing (1)  must not hang down from the brake hose.

  Courtesy of BMW OF NORTH AMERICA, INC.
