Install the left and right spring strut holder

Install spring suspension strut

• Expand spring strut holder (3) with special tool 2 414 636
• Protecting the output shaft from damage with a towel is mandatory (1)  .
• Release swivel bearing (2)  from the attachment on the upper wishbone.
• Feed in the spring strut holder (3)  in the arrow direction and use the gap to align it with the positioning pin on the suspension strut.
• The spring strut holder (3) must  be pushed upwards onto the spring strut to the stop.
• Remove towel (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  Secure the swivel bearing

• Fasten the swivel bearing (1)  by using the special tool 2 413 317 to protect it from tilting outwards.

  Swivel bearing (1)  must not hang down from the brake hose.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the special tool 2 414 636.

  The spring strut holder (1) must  be pushed up to the limit position on the spring strut!

  Courtesy of BMW OF NORTH AMERICA, INC.

  Checking the installation position of the spring strut holder

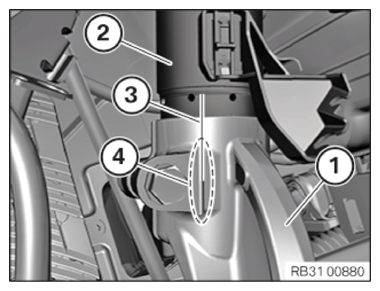

• Check the installation position of the spring strut holder (1)  for the spring strut (2)  .

  The spring strut holder (1)  must be correctly aligned to the spring strut (2)  on the basis of the color coding (3)  .

  The color coding (3)  runs in extension of edge (4)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1)  .

  Parts:  Screw

• Screw the screw (1)  into the spring strut holder (2)  and tighten it.
  TIGHTENING TORQUES SPECIFICATION



  Spring strut holder on front spring strut
  M10 Replace screw.
  	Joining torque	42 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the NORMAL POSITION .
• Position spring strut holder on wishbone.
• Replace the screw (3) and the nut (1).

  Parts:  Bolt and nut

• Punch in the swivel bearing (2)  at the front towards the inner.
• Insert the screw (3)  .
• Tighten the nut (1)  in the NORMAL POSITION .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Spring strut holder to lower wishbone
  M14 Replace screw and nut. Tighten the screw connection in the normal position!
  	Joining torque	165 Nm
  	Angle of rotation	90°
