Removing the roller cam follower of the intake camshaft
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

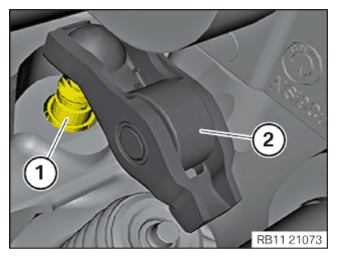

- Release and remove the roller cam follower (2) on the Intake side from the hydraulic valve clearance compensating element.
- Place all roller cam followers In order In special tool 0 495 105 (11 4 480) .
- Remove all hydraulic valve clearance compensating elements (1) to the top.
- Place all hydraulic valve clearance compensating elements Into the special tool 0 495 105 (11 4 480)
along with the roller cam followers In order.
