Removing the right-hand engine ventilation line and the crankcase ventilation intake pipe

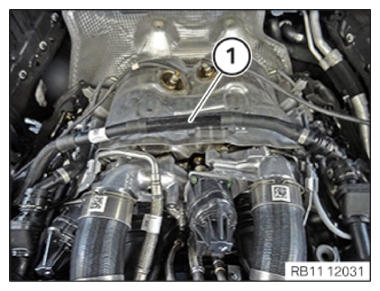

Unlock the intake pipe (1) for the crankcase ventilation and detach it from the cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

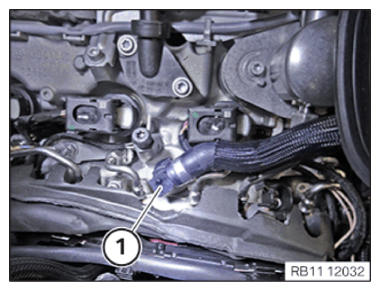

Unlock the intake pipe (1) for the crankcase ventilation.
Remove it and put it aside if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

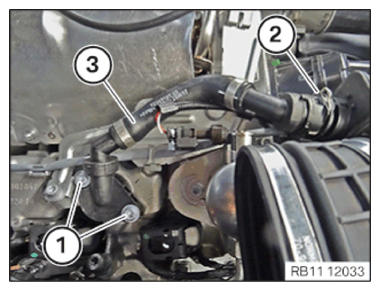

Loosen screws (1) .
Unlock the detent (2) and detach the engine ventilation line (3) from the clean air pipe.
Detach the engine ventilation line (3) from the cylinder head cover, unthread it and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
