Removing the left engine ventilation line

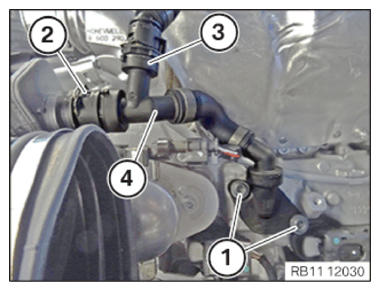

- Loosen screws (1) .
- Unlock the detent (2) and detach the engine ventilation line (4) from the clean air pipe.
- Unlock the locking mechanism (3) and detach the engine ventilation line (4) from the intake pipe of the crankcase ventilation.
- Detach the engine ventilation line (4)
from the cylinder head cover, unthread it and remove it.
