Removing the left and right rear diffuser
Removing the left and right rear diffuser
NOTE:
Description is for left component only. Procedure on the right side is identical.

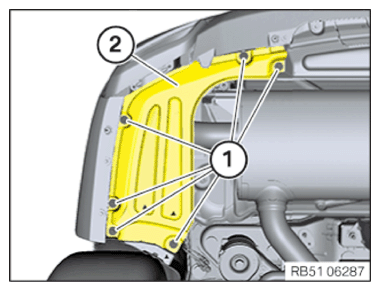

Loosen screws
(1)
.
Feed out and remove the rear diffuser
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
