Remove upper heat shield
Remove upper heat shield

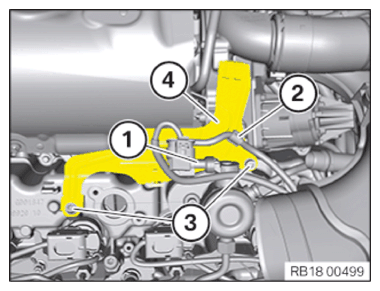

Unlock connector
(1)
and detach.
Release the cable from the clamp
(2)
.
Loosen screws
(3)
.
Remove holder
(4)
.
Courtesy of BMW OF NORTH AMERICA, INC.

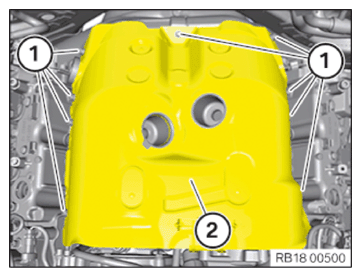

Loosen screws
(1)
.
Remove upper heat shield
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
