Remove the sliding block of cylinder bank 2

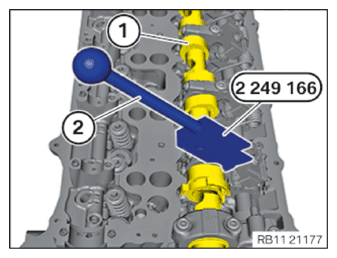

- Position the special tool 2 249 166
on the intake camshaft (1)
in the area of the sliding block (2)
to be disassembled.

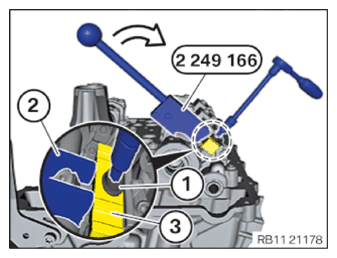

- Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow .
- Loosen screw (1) .
- Remove the gate (3) and place it arranged in order into 0 495105 (11 4 480).
- Repeat the step for all the gates.
