Remove right heat shield

Release the screws in areas (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

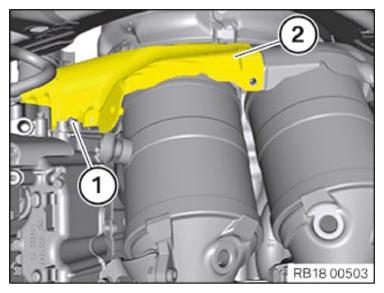

Release the screw (1) at the bottom of the heat shield (2) .
Release the heat shield (2) from the heat shield below.

Courtesy of BMW OF NORTH AMERICA, INC.

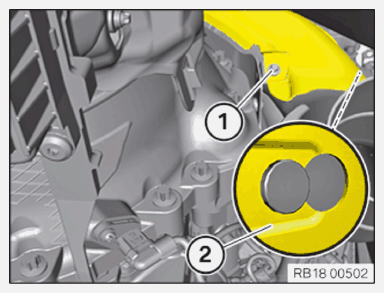

Release the screw (1) at the top of the heat shield (2) .
Release right heat shield (2) from the other heat shield.
Thread out and remove right heat shield (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screw (1) at the bottom of the heat shield (2) .
Release the heat shield (2) from the heat shield below.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) at the top of the heat shield (2) .
Release right heat shield (2) from the other heat shield.
Thread out and remove right heat shield (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.
