Releasing the transmission bearing support
Releasing the transmission bearing support

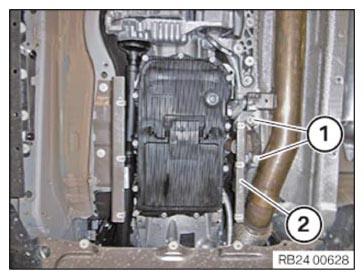

Version 1:
Loosen the screws
(1)
on the transmission bearing support
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Version 2:
Loosen the screws
(1)
on the transmission bearing support
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nuts
(1)
.
Remove retaining plate
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Version 1:
Loosen the screws
(1)
on the transmission bearing support
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Version 2:
Loosen the screws
(1)
on the transmission bearing support
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
