Releasing the heat protection wire ring of the left oxygen sensor monitor
Releasing the heat protection wire ring of the left oxygen sensor monitor
WARNING:
Hot surfaces.
Risk of burning!
Perform all work only on components that have cooled down.

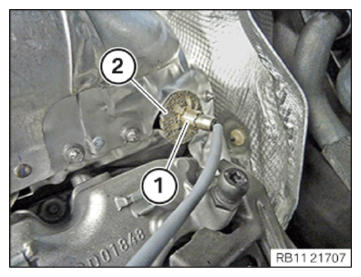

Release retaining clip
(1)
.
Release the heat protection wire ring
(2)
over the oxygen sensor monitor.
