Installing the strut brace on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the strut brace
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

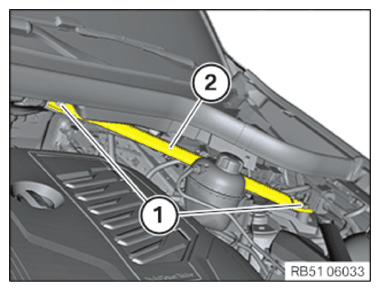

- Install the strut brace (2) .
- Replace screws (1)
.
Parts: Screws
- Tighten the bolts (1) with the special tool 0 490 504 (00 9 120)
.TIGHTENING TORQUE SPECIFICATIONS
Strut brace M10x55 screw Replace screws Joining torque 56 Nm Angle of rotation 90°
