Installing the sliding block of cylinder bank 2

Remove the oil and dirt from the sliding block (3) .
Position the sliding block (3) and abut with the screw (1).

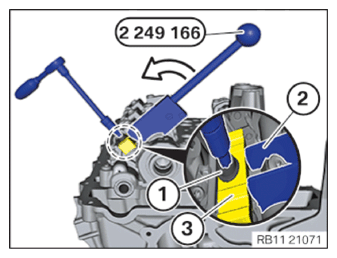

Position the special tool 2 249 166 on the intake camshaft (1) in the sliding block (2) area.
Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow .

Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Sliding block on cylinder head
Screw M 7x35 10.9
	Tightening torque	20.5 Nm

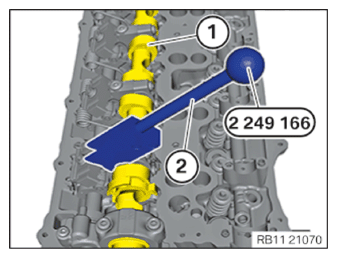

Relieve the special tool 2 249 166 (1) and feed it out of the camshaft (2) and place aside.
Repeat the step for all the gates.

Courtesy of BMW OF NORTH AMERICA, INC.
