Installing the left engine ventilation line

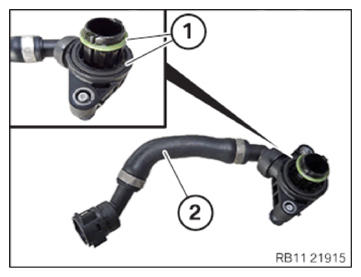

- Check the sealing rings (1)
of the engine ventilation line (2)
for correct placement and for damage, and replace if necessary.
- Mount the engine ventilation line (4) on the cylinder head cover.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Engine ventilation line screw Tightening torque 10 Nm - Connect the engine ventilation line (4) to the clean air pipe and lock the lock (2) .
- Connect the engine ventilation line (4) to the intake pipe of the crankcase ventilation and lock the lock (3) .
