Installing oil filler neck
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the sealing ring (2) on the oil filler neck (1).
Parts: Sealing ring
- Coat the sealing ring (2) with the recommended engine oil.ENGINE OIL SPECIFICATION
Technically suitable engine oils for BMW Group engines - Position oil filler neck (1).

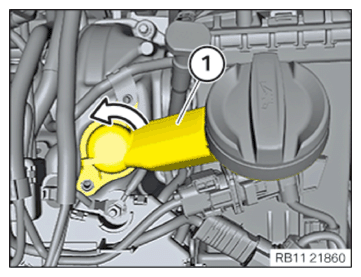

- Turn oil filler neck (1) about 15° counterclockwise.

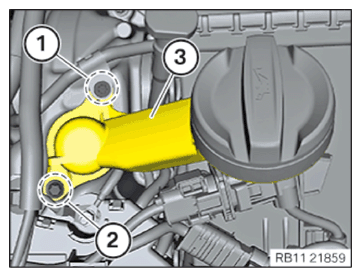

- Tighten screw (2) on the oil filler neck (3).TIGHTENING TORQUE SPECIFICATIONS
Oil filler neck M6x16 tightening torque 10 Nm - Tighten screw (1) on the oil filler neck (3).
TIGHTENING TORQUE SPECIFICATIONS
| Oil filler neck | ||
| M6x16 | tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING RIGHT CLEAN AIR PIPE .
- Refer to PARTIALLY INSTALLING THE RIGHT ENGINE VENTILATION LINE .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to INSTALLING THE CARRIER PLATE .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
