Install the rear outer door handle
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

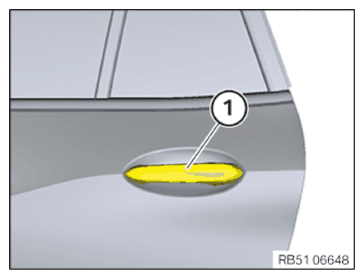

- Install the external door handle (1) and connect and lock the connector.
- Insert the front outside door handle (1).
- Insert the rear outside door handle (1).
- Tighten the clamping bolt (1) on the outside door handle support with the special tool 2 450 364.
TIGHTENING TORQUE SPECIFICATIONS
| Clamping bolt for door handle | ||
|---|---|---|
| screw | Tightening torque | 2 Nm |
- Install seal plug (1).
