Remove glove compartment

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
Refer to REMOVE RIGHT FOOTWELL TRIM .
Refer to REMOVING GLOVE BOX LIGHT .

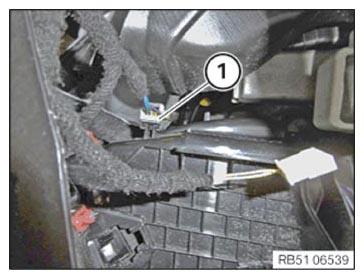

Release the plug connection (1) from the glove compartment (do not disconnect the plug connection).

Courtesy of BMW OF NORTH AMERICA, INC.

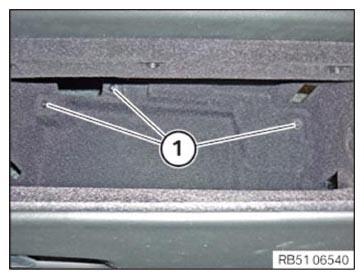

Release the screws (1) in the glove compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the covers (1) from the glove compartment in arrow direction with the special tool 0 493 681 (64 1 020) .
Loosen screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws (1) from the rear on the hinge of the glove compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
Slightly lift the glove box lid (1) as shown and release the screws (2).
Carefully feed out the glove compartment from the dashboard, and while doing so, unlock and disconnect all the plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.
