Installing the bracket on the center console trim

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS

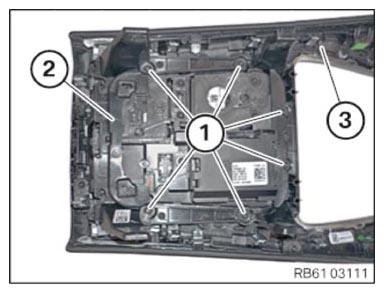

Bracket to center console trim
screw Tightening torque  1.8 Nm
G14419655Courtesy of BMW OF NORTH AMERICA, INC.
