Replacing lower oil sump section
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

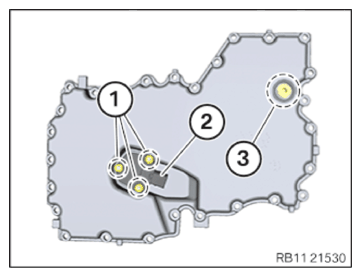

- Loosen nuts (1).
- Remove oil-level sensor (2).
- If applicable, remount the oil drain plug.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

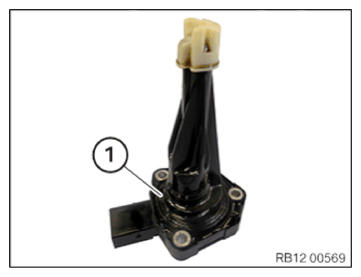

Prepare the oil-level sensor
- Replace sealing ring (1).
Parts:
Sealing ring
 Courtesy of BMW OF NORTH AMERICA, INC.
|
