Installing the cylinder head gasket
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Check the fitting sleeves (1) for damage, replace if necessary.

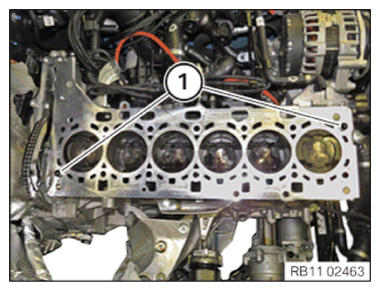

- Replace cylinder head gasket (1).
Parts: Cylinder head gasket
- For reworked cylinder heads, install a thicker cylinder head gasket (1) of +0.3 mm.
- Check cylinder head gasket (1) using the part number.
- Install cylinder head gasket (1) and place it correctly on the lining sleeves.
