Installing the right-hand engine ventilation line and the crankcase ventilation intake pipe

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

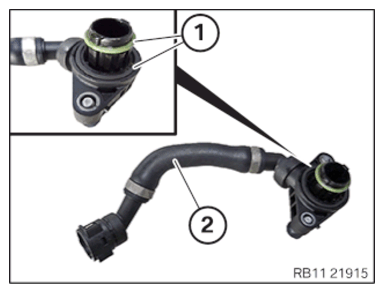

Check the sealing rings (1) of the engine ventilation line (2) for correct placement and for damage, and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

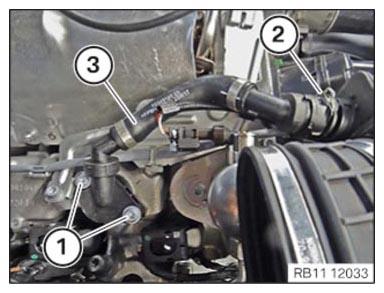

Mount the engine ventilation line (3) on the cylinder head cover.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Engine ventilation line
screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the engine ventilation line (3) to the clean air pipe and lock the lock (2).

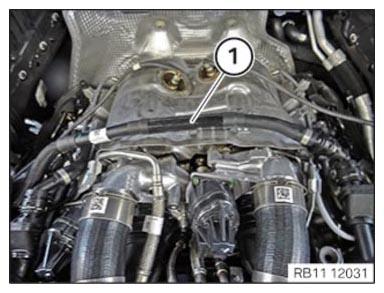

Replace the intake pipe (1) of crankcase ventilation.

Courtesy of BMW OF NORTH AMERICA, INC.

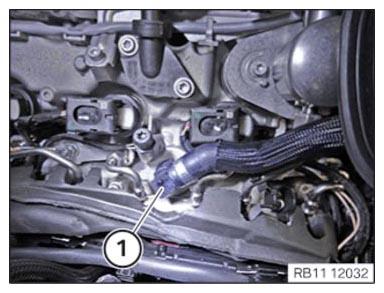

Connect the intake pipe of the crankcase ventilation (1) to the right cylinder head cover and audibly lock.

Courtesy of BMW OF NORTH AMERICA, INC.
