Installing the left and right knee airbag
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install knee airbag
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

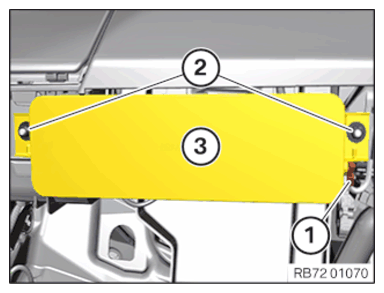

- Correctly position the knee airbag (3).
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATIONS
Knee airbag to support structure Nut Tightening torque 8 Nm - Connect connectors (1) and lock.
