Installing the center strut brace mount
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

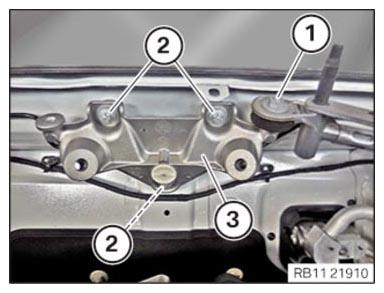

- Insert and install the mount (3) for the center strut brace.
- Tighten down screws (2).TIGHTENING TORQUE SPECIFICATIONS
Mount of center strut brace to lower part of cowl cross-member M8X30 tightening torque 28 Nm - Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wiper console to body | ||
| Nut M8 Replace nut. |
tightening torque | 11.8 Nm |
