Installing front connecting support on tunnel

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

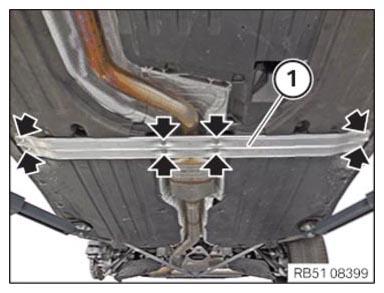

Install front connecting support on tunnel (1).
Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Connecting support on tunnel to body
Hexagon screw with flange	tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
