Install the right and left unfiltered-air duct
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

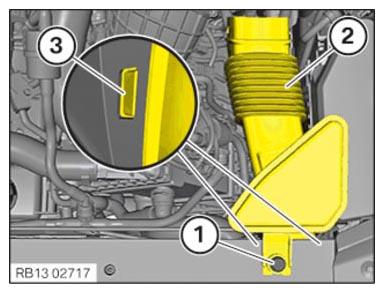

- Feed in unfiltered-air duct (2) and install.
- Lock unfiltered-air duct (2) into the air duct (3).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Resonator to rear top cross connection M8x30 screw tightening torque 10 Nm - Feed in unfiltered-air duct (2) and install.

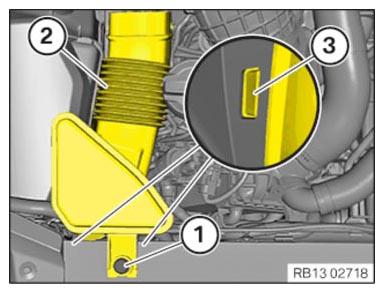

- Lock unfiltered-air duct (2) into the air duct (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Resonator to rear top cross connection | ||
| M8x30 screw | tightening torque | 10 Nm |
