Install right heat shield
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

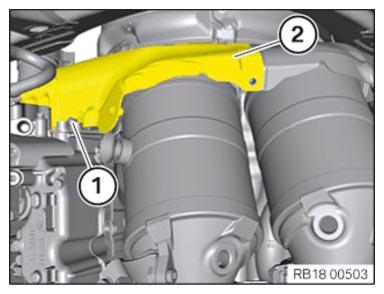

- Thread in right heat shield (2) and connect with the other heat shield.

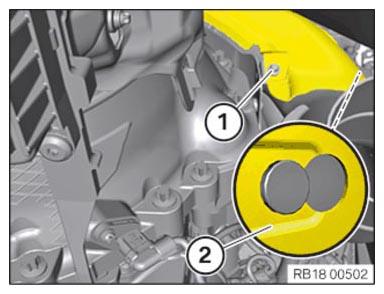

- Tighten the screw (1) at the top of heat shield (2).TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate M6x16 tightening torque 10 Nm - Connect the heat shield (2) with the heat shield below.
- Tighten the screw (1) at the bottom of heat shield (2).TIGHTENING TORQUE SPECIFICATIONS

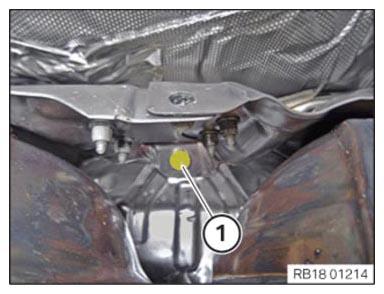

Heat protection plate M6x16 tightening torque 10 Nm - Tighten down screw (1).

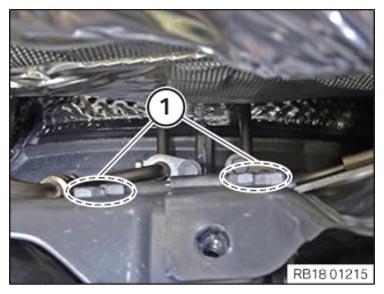

- Position the holder of the pressure lines.
Tighten screws in areas (1).
TIGHTENING TORQUE SPECIFICATIONS
| Pressure line lug to the lateral side of the heat shield | ||
| M6x16 screw | Tightening torque | 8 Nm |
- Thread in right heat shield (2) and connect with the other heat shield.

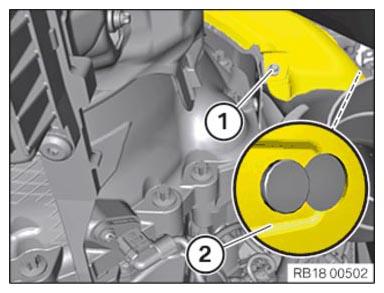

- Tighten the screw (1) at the top of heat shield (2).TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate M6x16 tightening torque 10 Nm - Connect the heat shield (2) with the heat shield below.
- Tighten the screw (1) at the bottom of heat shield (2).
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
| M6x16 | tightening torque | 10 Nm |
