Install left heat shield

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

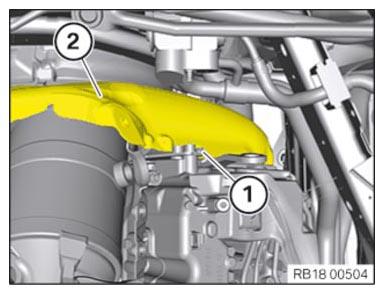

Feed in left heat shield (2) and connect to the other heat shields.

Tighten the screw (1) at the top of heat shield (2).

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

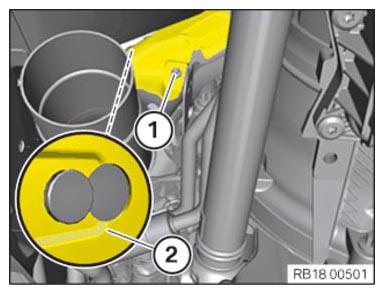

Connect the heat shield (2) with the heat shield below.

Tighten the screw (1) at the bottom of heat shield (2).

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

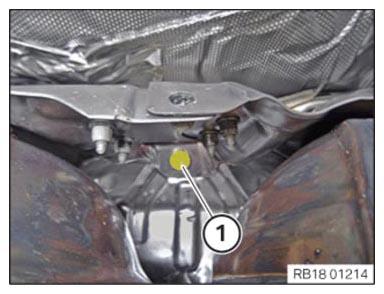

Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

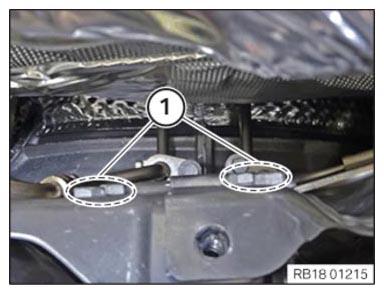

Position the holder of the pressure lines.

Tighten screws in areas (1).

TIGHTENING TORQUE SPECIFICATIONS

Pressure line lug to the lateral side of the heat shield
M6x16 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in left heat shield (2) and connect to the other heat shields.

Tighten the screw (1) at the top of heat shield (2).

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the heat shield (2) with the heat shield below.

Tighten the screw (1) at the bottom of heat shield (2).

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version with S1DFA:

Position the holder of the pressure lines.

Tighten screws in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
