Install heat shield, top

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

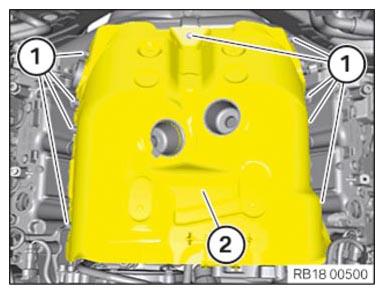

Install top heat shield (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

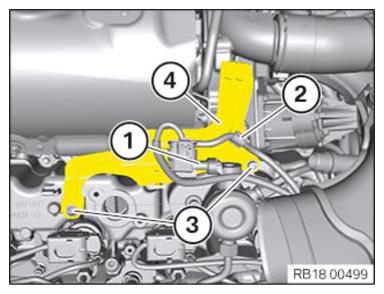

Install holder (4).

Tighten down screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Holder control sensor cable to the cylinder head cover
M6x16	tightening torque	8 Nm

Secure cable to the clamp (2).
Pin up connector (1) and lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
