Fastening the wiring harness section to the left cylinder head cover
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
NOTE:
RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
- Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.

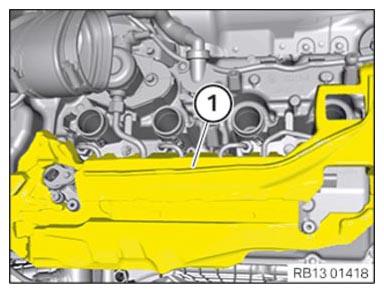

- Check the cover (1) for damage.
- Replace the faulty or fuel-soaked cover.
- Insert and install the cover (1) at the left cylinder head cover.

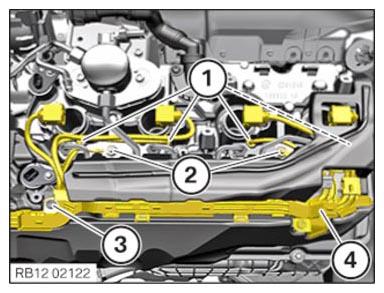

- Guide in the wiring harness section (4) and install.
- Tighten down screw (3).TIGHTENING TORQUE SPECIFICATIONS
Cable duct to cylinder head cover/cylinder head M6 screw tightening torque 10 Nm - Position the grounding cables and tighten the nuts (2).TIGHTENING TORQUE SPECIFICATIONS
Ground cable on cylinder head cover/ground pin Nut M5 tightening torque 4.6 Nm - Connect connectors (1) and lock.
The connectors (1) must engage audibly.

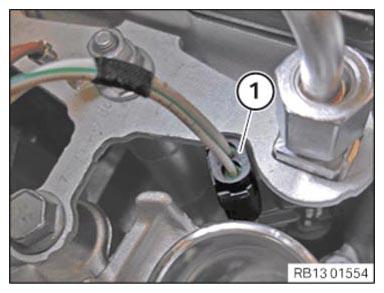

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Check all connectors (1) on the injectors again to ensure they are correctly fitted.
- Check if all connectors (1) have been engaged.

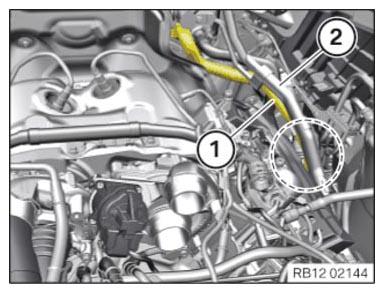

- Pull the coolant hose (1) in the marked area carefully
upwards over the refrigerant line and lay it down.

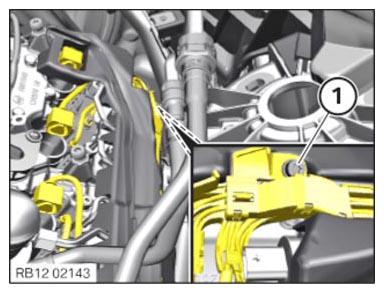

- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS

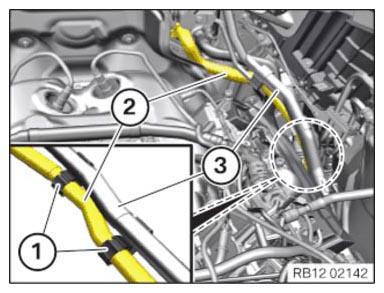

Cable duct to cylinder head cover/cylinder head M6 screw tightening torque 10 Nm - Carefully press the coolant hose (1) down in the marked area and position at the refrigerant line (3).
- Lock holder (1).
The holders (1) must snap-in audibly.

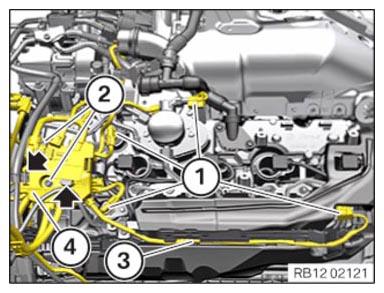

- Guide in the wiring harness section (4) and install.
- Secure the cable (3) in the clamps.
- Tighten down screws (2).TIGHTENING TORQUE SPECIFICATIONS
Cable duct to cylinder head cover/cylinder head M6 screw tightening torque 10 Nm - Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

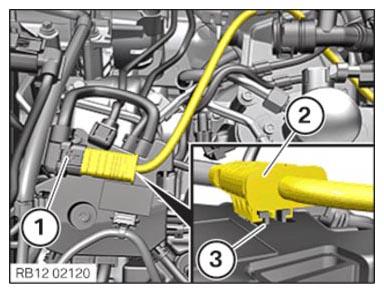

- Connect the connector (2) from the oxygen sensor monitor with the holder (3) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

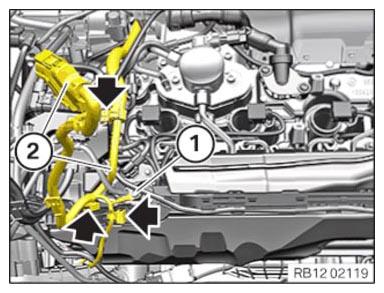

- Guide in the wiring harness section (2) and install.
- Secure the clamps (arrows).
- Position the ground cable and tighten the screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable to cylinder head cover/cylinder head | ||
| M6 | tightening torque | 10 Nm |
