Disassembling all special tools
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

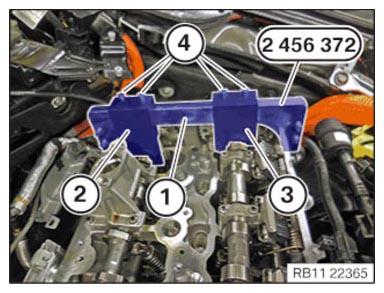

- Release screws (4) from the special tool set 2 456 372 .
- Feed setting gauge 0.5° (2) out of special tool 2 456 372 between exhaust camshaft and basic carrier (1) and remove.
- Feed setting gauge 0.7° (3) out of special tool 2 456 372
between intake camshaft and basic carrier (1) and remove.

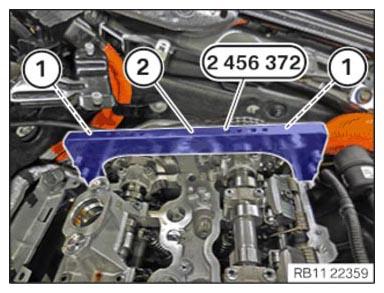

- Release screws (1) from the special tool set 2 456 372 .
- Guide the basic carrier (2) out of the special tool 2 456 372
and remove.

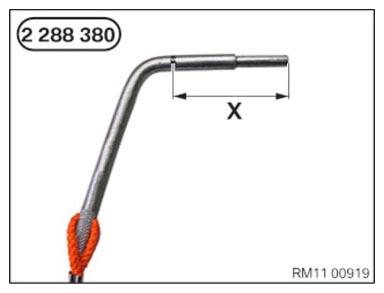

- Guide the special tool 2 288 380
out and remove.

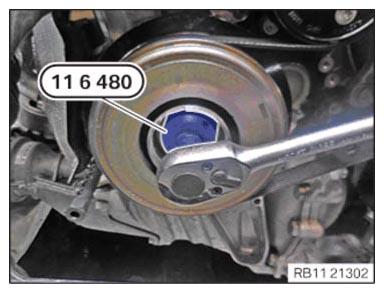

- Guide the special tool 0 493 380 (11 6 480)
out and remove.

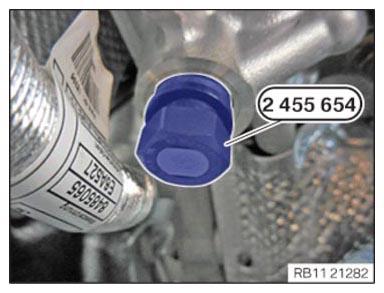

- Guide the special tool (1) 2 455 654 out and remove.
