Blocking engine in TDC firing position

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

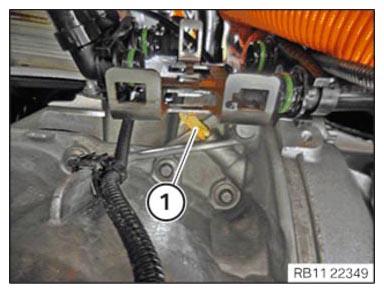

Guide out and remove sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.
Courtesy of BMW OF NORTH AMERICA, INC.

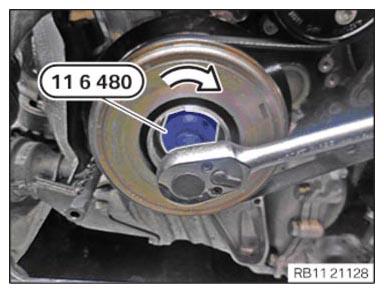

With the special tool 0 493 380 (11 6 480) , turn the engine in arrow direction to the TDC firing position of cylinder 1 .

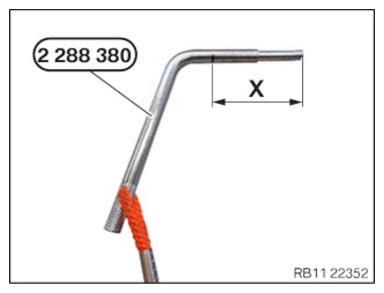

Make sure the right special tool 2 288 380 is resting correctly on the lock support up to dimension (X).
Dimension (X) = 55 mm

Courtesy of BMW OF NORTH AMERICA, INC.

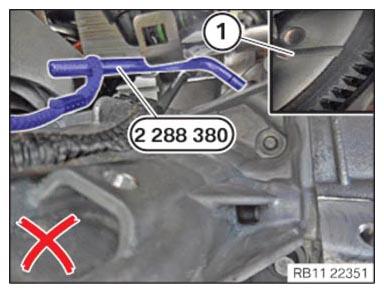

Check whether the correct dimension has been reached
The special tool 2 288 380 is incorrectly positioned.

The TDC firing position (1) of cylinder 1 not achieved.

Courtesy of BMW OF NORTH AMERICA, INC.

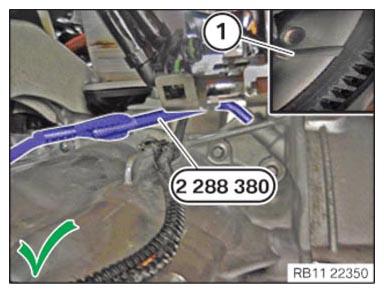

Check whether the correct dimension has been reached
The special tool 2 288 380 is correctly positioned.

The engine is in TDC firing position (1) of cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.

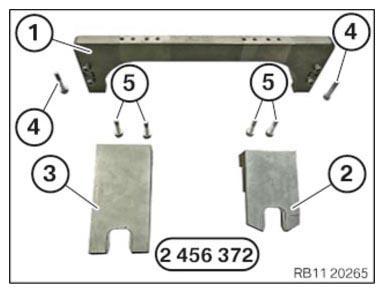

Keep the set of special tools 2 456 372 ready:

Number	Description
1	Basic carrier
2	Setting gauge for adjusting the intake camshaft
3	Setting gauge for adjusting the exhaust camshaft
4	Basic carrier screws on cylinder head
5	Screw gauge on basic carrier

Courtesy of BMW OF NORTH AMERICA, INC.

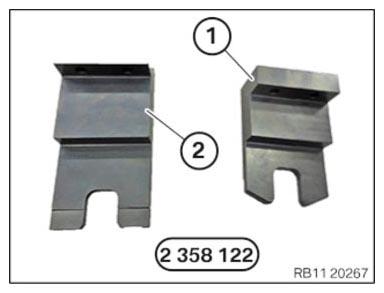

Overview of the test gauge from the set of special tools 2 358 122 :

Number	Description
1	Test gauges for fixing in place the intake camshaft
2	Test gauges for fixing in place the exhaust camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

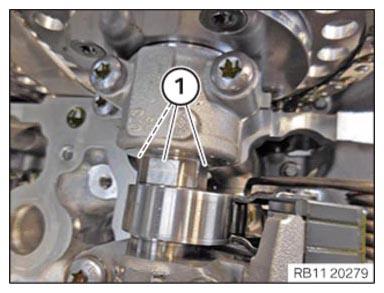

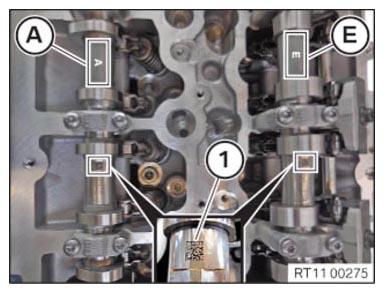

Rotate the intake camshaft (E) and the exhaust camshaft (A) so that the marks (1) are legible from above.

Courtesy of BMW OF NORTH AMERICA, INC.

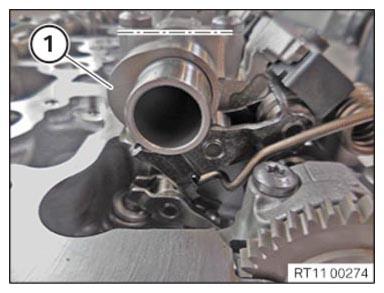

Make sure the cam (1) on the exhaust camshaft on cylinder 1 is pointing slightly to the inside right at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure the cam (1) on the intake camshaft on cylinder 1 is pointing leftwards at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.

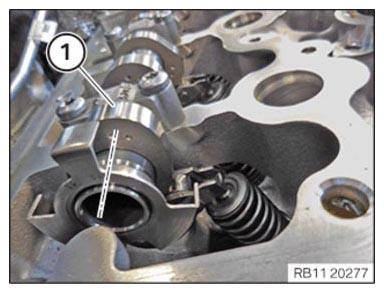

Make sure the flattened areas (1) on the intake camshaft and the exhaust camshaft are pointing upwards at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.

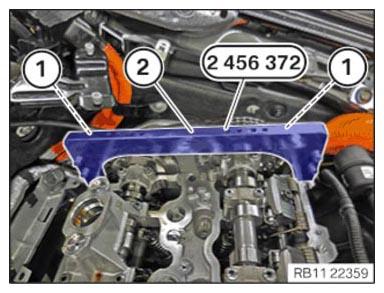

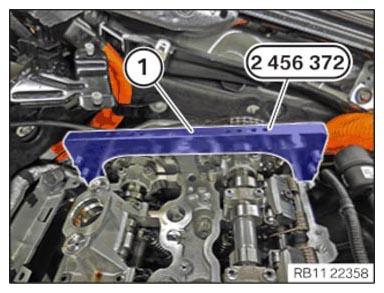

Position the basic carrier (1) from the set of special tools 2 456 372 on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) from special tool set 2 456 372 on the basic carrier (2).

TIGHTENING TORQUE SPECIFICATIONS

Basic carrier to cylinder head
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

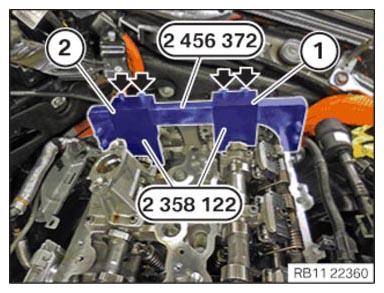

Position the test gauge (1) from the set of special tools 2 358 122 between the intake camshaft and the basic carrier from the set of special tools 2 456 372 .
Position the test gauge (2) from the set of special tools 2 358 122 between the exhaust camshaft and the basic carrier from the set of special tools 2 456 372 .
Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Test gauge to basic carrier
M6	Tightening torque	8 Nm
