Attaching the charge air cooler
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

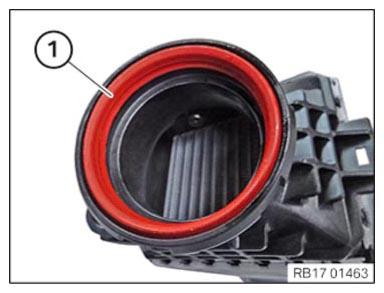

- Check the seal (1) for damage and replace if necessary.

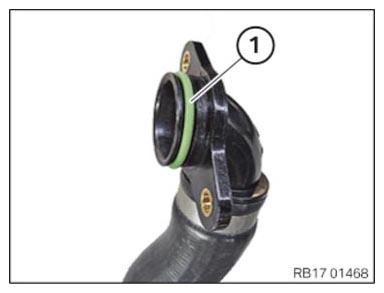

- Check sealing ring (1) for damage, replace if necessary.

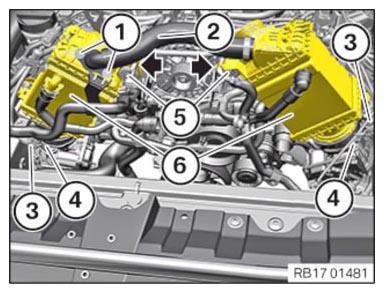

- Feed the charge air cooler (6) in and install it.
- Tighten down screws (5).TIGHTENING TORQUE SPECIFICATIONS
Charge air cooler to holder M6x35 tightening torque 8 Nm - Secure the coolant lines (arrowed) to the clamps.
- Lock clamps (4).
The clamps (4) must engage audibly.
- Connect connectors (3) and lock.
The connectors (3) must engage audibly.
- Insert and install charge air line (2).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Connecting hose to charge air cooler | ||
| Hexagon screw M6 | tightening torque | 8 Nm |
