Securing the wiring harness section from the cylinder head cover on the left
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.

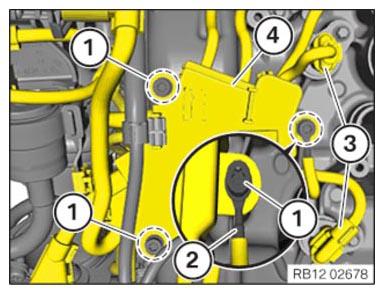

- Position wiring harness section (4).
- Position the grounding point (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Cable duct to cylinder head cover/cylinder head M6 screw tightening torque
10 Nm - Connect the plug connections (3) and lock.

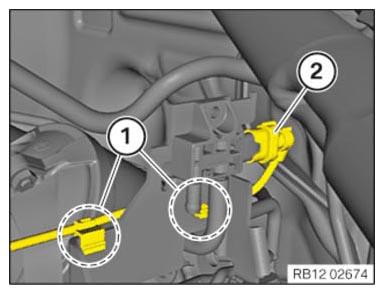

- Secure the wiring harness mounting (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Cable duct to cylinder head cover/cylinder head M6 screw tightening torque

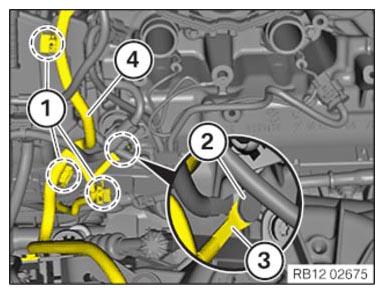

10 Nm - Carefully pull the coolant hose (2) upwards over the refrigerant line (3) in the marked area and set aside.
- Lock the holder (1).
- Position wiring harness section (4).
- Position the grounding point (3).
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Ground cable to cylinder head cover/cylinder head M6 tightening torque

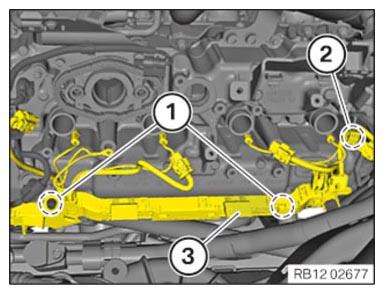

10 Nm - Fix the wiring harness mounting in areas (1).
- Secure the wiring harness mounting (3).

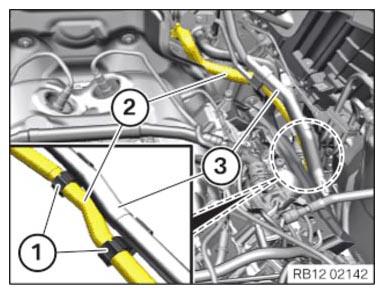

- Fix wiring harness section (1) in area (2).

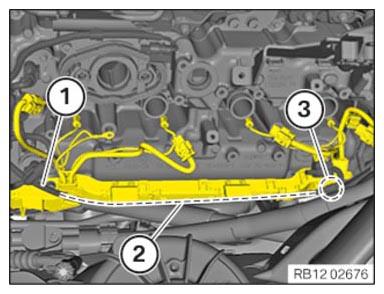

- Fix the wiring harness mounting in areas (1).
- Connect connectors (2) and lock.
