Remove the sliding block of cylinder bank 2

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

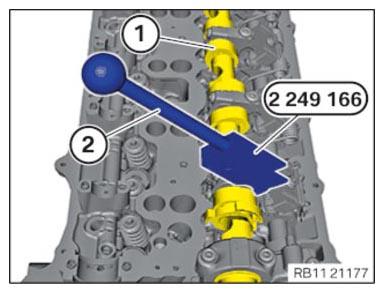

Position the special tool 2 249 166 on the intake camshaft (1) in the area of the sliding block (2) to be disassembled.

Courtesy of BMW OF NORTH AMERICA, INC.

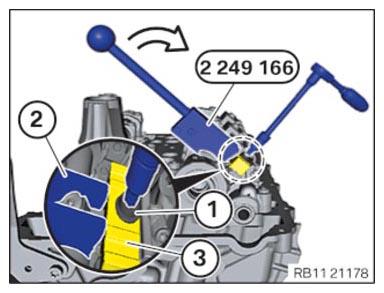

Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow.
Loosen screw (1).
Remove the gate (3) and place it arranged in order into 0 495 105 (11 4 480) .
Repeat the step for all the gates.

Courtesy of BMW OF NORTH AMERICA, INC.
