Remove the cylinder head of cylinder bank 1 from the assembly jig

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

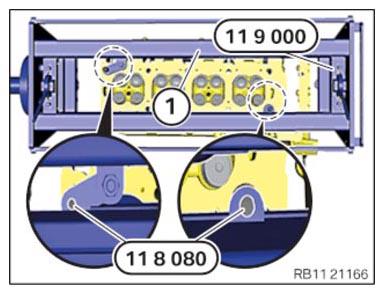

Release the screws 0 496 408 (11 8 080) at the special tool 0 494 362 (11 9 000) in the area of the attachment points.
Remove the cylinder head (1).

Courtesy of BMW OF NORTH AMERICA, INC.
