Remove the air conditioning compressor (engine removed)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

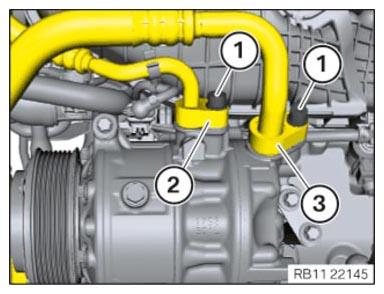

Loosen screws (1).
Remove the pressure line (2).
Remove the intake pipe (3).

Courtesy of BMW OF NORTH AMERICA, INC.

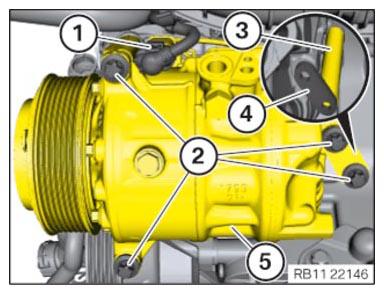

Unlock plug connection (1) and disconnect.
Loosen screws (2).
Remove the latch (4).
Remove the spacer sleeve (3).
Remove air conditioning compressor (5).

Courtesy of BMW OF NORTH AMERICA, INC.
