Releasing the high-voltage cables on the EME
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Prerequisite
Switch off high-voltage system.
WARNING:
Damaged high-voltage cables, high-voltage connectors and high-voltage components.
Mortal hazard through electric shock!
Mortal hazard through electric shock!
- Do not repair damaged high-voltage cables, high-voltage connectors and high-voltage components. They must always be replaced with new parts in their original packaging.
- If high-voltage cables, high-voltage connectors and high-voltage components are damaged and contact protection is not longer provided, technical support must be contacted immediately.
NOTE:
TECHNICAL INFORMATION
Observe the additional information for unlocking and disconnecting various plug connections in electrical and hybrid vehicles!
Observe the additional information for unlocking and disconnecting various plug connections in electrical and hybrid vehicles!

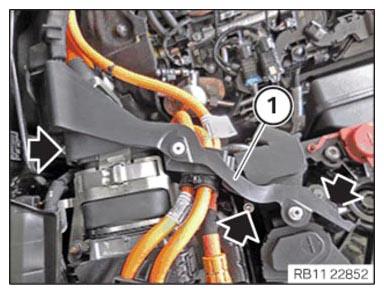

- Release the screws (arrows).
- Feed out the sealing frame (1) and remove.

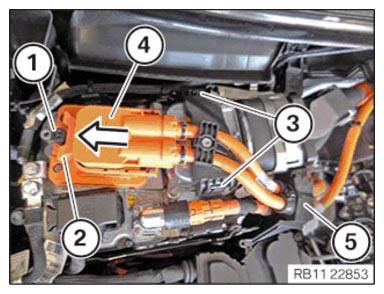

- Unlock and remove the bridge for the high-voltage contact monitor (1).
- Release the lock (2) in arrow direction.
- Unlock and release the holder (3).
- Feed the high-voltage connector (4) out and set it aside.
- Feed out the high-voltage cable (4) from the holder (5) and set it to one side.

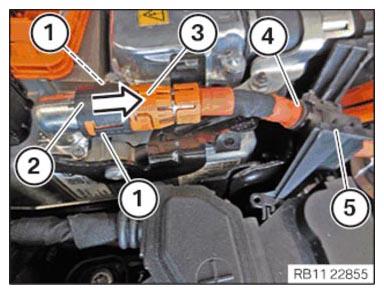

- Unlock the locks (1).
- Release the circlip (2) in the arrow direction.
- Unlock plug connection (3) and disconnect.
- Feed out the high-voltage cable (4) from the holder (5) and set it to one side.

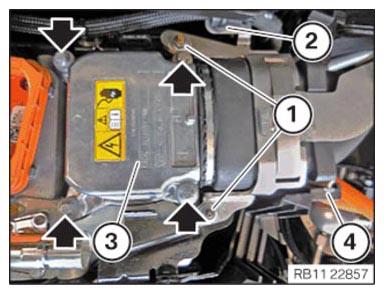

- Release the screws (arrows).
- Loosen nuts (1).
- Loosen clamp (2).
- Feed the high-voltage connector (3) out and set it aside.
- Feed out the high-voltage connector (3) from the holder (4) and set to one side.

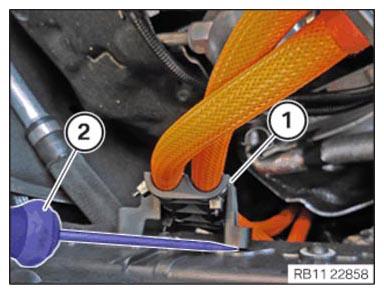

- Release the holder (1) with a standard screwdriver (2).

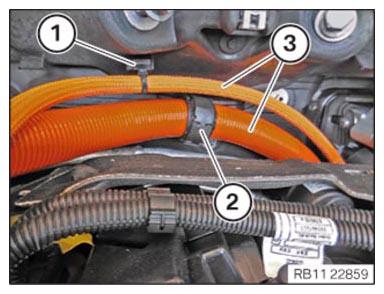

- Loosen clamp (1).
- Unlock and release the holder (2).
- Feed out the high-voltage cables (3) and set to one side.
