Partially release oil sump acoustic cover
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

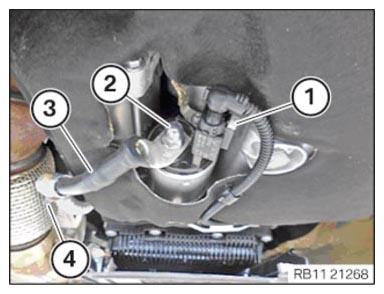

- Unlock and loosen connector (1).
- Loosen nut (2).
- Guide the positive battery cable (3) out of the clamp (4) and lay to one side.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

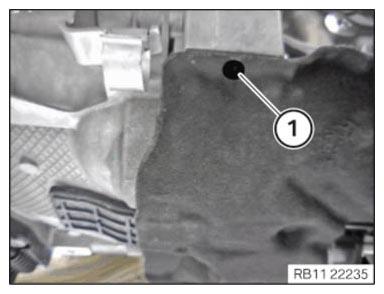

- Undo Christmas tree clip (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

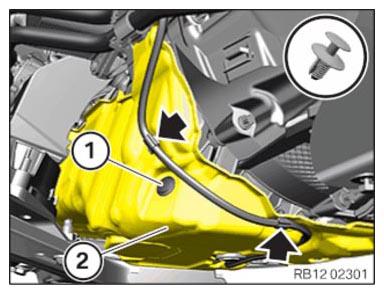

- Loosen expanding rivet (1).
- Release the clamps (arrows).
- Lower oil sump acoustic cover (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
