Removing the engine from the assembly jig
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

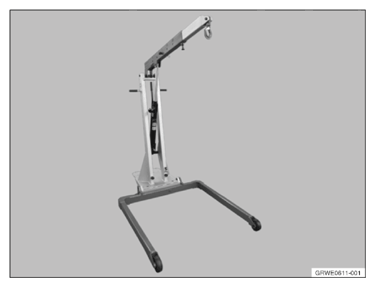

- Stage the workshop crane 2 220 718
.

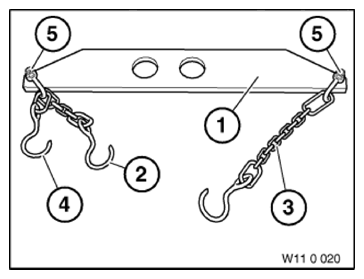

- Prepare the special tool (lifting equipment) 0 490 567 (11 0 020)
.NOTE: TECHNICAL INFORMATION

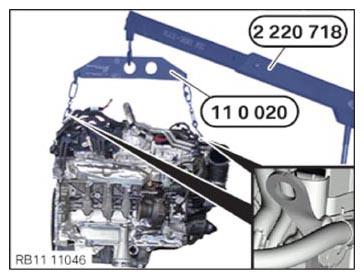

The workshop crane, lifting gear and the mounting brackets on the engine must all be connected to each other so that the engine hangs straight upon lifting. - Connect both hooks of the special tool 0 490 567 (11 0 020) to the front and rear of the engine with the mounting brackets.
- Connect the workshop crane 2 220 718
to the special tool (lifting equipment) 0 490 567 (11 0 020)
.

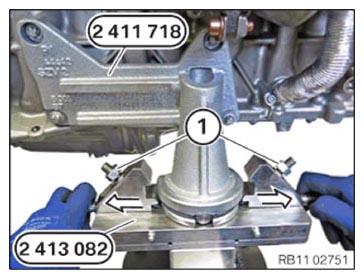

- Slacken nuts (1).
- Unclamp the clamp jaws of the special tool (motor mount) 2 413 082 in the direction of the arrow.
- Raise the engine slowly.

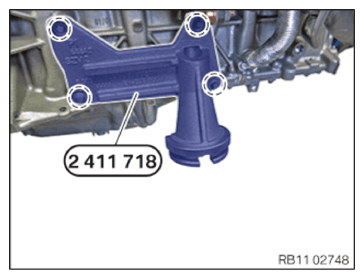

- Unscrew the screws (marks) and remove the special tool 2 411 718 .
