Installing the front bottom right wheel arch cover

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front bottom wheel arch cover

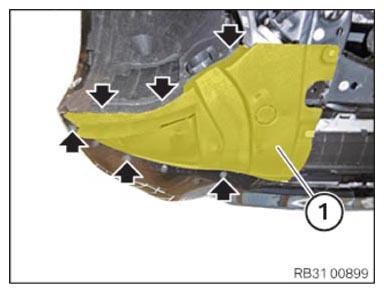

Feed in the front bottom wheel arch cover (1).
Tighten all bolts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Lower front wheel arch cover
Thermoplastic hexagon screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
